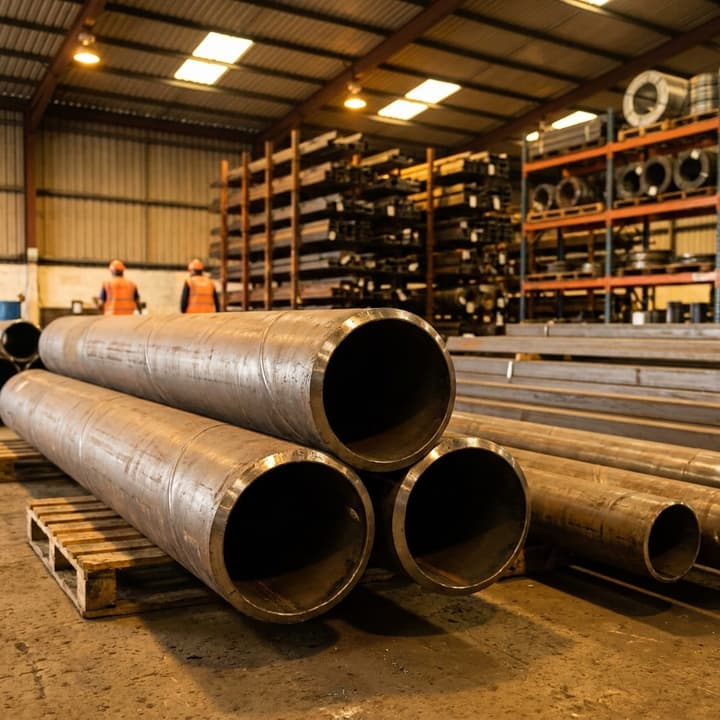

LSAW & HSAW Pipes

About LSAW/HSAW

Large-diameter LSAW and HSAW steel-pipe options. Tell us the applicable API 5L, IS 3589, ASTM A672, EN 10219, or other approved route, with the grade, dimensions, service, tests, coating, inspection and logistics.

Use this page as a product and specification reference. The quotation must state the exact material grade, dimensions, manufacturer, certification or document scope, inspection, quantity, price, current availability, freight, and proposed delivery timing for the specific RFQ.

Specification reference

Confirm the exact grade, dimensions, tolerance, test certificate, and current availability for your requirement before ordering.

Common applications

These are enquiry contexts, not universal approvals. The project design and governing specification must approve the exact product, grade, dimensions, and service conditions.

• Water Transmission: Bulk water mains, penstock pipes, irrigation canals, desalination plant piping.
• Oil & Gas: Crude oil pipelines, natural gas transmission, cross-country pipelines.
• Piling & Marine: Foundation piles, marine piles, jetty construction, cofferdams.
• Infrastructure: Bridge casings, culverts, tunnel liners, structural columns.

Potential source references

The quotation must identify the proposed manufacturer, current availability, inspection documents, and delivery basis for the specific RFQ.

• Jindal SAW Ltd
• Welspun Corp
• Man Industries
• PSL Limited

Applicable standards and specifications

• API 5L
• IS 3589

Technical Definition, Manufacturing Processes, and Governing Codes

Large-diameter welded steel pipes are used in water transmission, pipeline, piling, casing, and structural packages. Submerged Arc Welding is part of the manufacturing route, but a procurement description also needs the plate or coil route, grade, outside diameter, wall, length, end preparation, dimensional tolerances, testing, coating, and lining requirements.

LSAW (Longitudinal Submerged Arc Welded) and HSAW (Helical or Spiral Submerged Arc Welded) are two large-diameter welded-pipe routes. LSAW may use UOE, JCOE, or another qualified plate-forming process before longitudinal seam welding; HSAW forms coil into a helix before seam welding. API 5L and IS 3589 are different product-standard routes whose applicability, edition, product level, and project requirements must be stated in the purchase specification.

Service Application and Structural Suitability

Selection between LSAW and HSAW follows the project design, manufacturing specification, diameter and wall range, service, field-joint plan, testing, coating, and logistics. Water-main, piling, casing, and hydrocarbon packages can impose very different controls even when the outside diameter is similar. Send the approved material and project specifications instead of asking a supplier to choose solely from the application name.

Do not substitute spiral, longitudinal, or seamless pipe for another route without written engineering acceptance. For buried or immersed service, define the external coating, internal lining, holiday testing, end cutback, repair procedure, and field-joint treatment. The coating system needs to match handling and installation as well as the surrounding environment.

Technical Large Diameter Welded Pipe Specification Table

Repository dimensional configurations for preliminary comparison. Final availability and acceptance depend on grade, wall, manufacturing route, project tolerances, and the mill offer.

Do not infer pressure or hydrotest capability from outside diameter alone. Design pressure and mill test pressure depend on wall, grade, applicable specification, and project requirements.

Worked theoretical mass calculation for a large-diameter pipe

For a preliminary logistics comparison on a municipal bulk-water project near Kanpur Dehat, consider a 24" OD (609.6 mm) HSAW pipe with a 10.0 mm nominal wall. This example calculates theoretical steel mass only; it does not select the wall or establish a pressure rating.

Use the carbon-steel planning formula: weight (kg/m) = (OD - t) * t * 0.02466.

With OD = 609.6 mm and t = 10.0 mm, weight = (609.6 - 10.0) * 10.0 * 0.02466 = 147.86 kg/m.

On that theoretical basis, one 12 m plain pipe is about 1,774.34 kg before coating, lining, weld reinforcement, end preparation, attachments and permitted manufacturing variation.

Use the result to plan lifting, supports and a preliminary payload. The quotation must state whether billing uses theoretical or actual mass. Wall selection remains with the project engineer under the governing code, design pressure and temperature, surge case, material grade, manufacturing tolerance, corrosion allowance, joint factor and other project inputs.

Common Procurement Mistakes and Structural Failures

Large-diameter orders can become ambiguous when these project controls are omitted:

• End geometry omitted: State the project limits for diameter, ovality, end squareness, straightness, and fit-up. Agree how ends will be restrained and checked after transport.
• Coating scope split between vendors: Put surface preparation, coating or lining system, end cutback, testing, repairs, handling, and field-joint responsibilities in one approved schedule.
• Manufacturing route substituted commercially: Keep LSAW, HSAW, seamless, grade, product level, and supplementary requirements under formal deviation control. A lower quote is not engineering approval.

Kanpur Steel Market Pricing Mechanics & Regional Delivery Basis

A large-diameter pipe quotation should state whether the offer is by mass, length, or piece and define the theoretical or actual mass basis. Keep pipe manufacture, coating, lining, testing, end preparation, inspection, loading supports, freight, permits, escorts, and taxes visible as separate commercial items where they apply.

For routes from Kanpur or the supplying mill to Lucknow, Agra, Prayagraj, Varanasi, Gorakhpur, Jhansi, Bareilly, Patna, or another site, provide the exact delivery point, access survey, turning limits, storage area, lifting plan, and unloading responsibility. The accepted transport plan must state vehicle placement and the basis of any transit estimate; the page does not promise a corridor SLA.

Define the quality dossier in the purchase order. Depending on the project, it may include the MTC, heat and pipe list, dimensional report, weld NDT reports, hydrotest record, coating or lining reports, inspection release, packing list, and transport condition record. Name the document index and approval status required before dispatch.

Standards and Testing Compliance

Testing and inspection depend on the governing standard, product level, grade, size, wall, service, and supplementary project requirements. The enquiry should identify weld NDT, mechanical testing, hydrotest, dimensional inspection, coating tests, witnessing, and report approval where applicable. Ask the mill to submit its inspection and test plan for review; do not derive a hydrotest pressure from outside diameter alone.

Key Takeaways for Kanpur Large Pipe Sourcing

A summary of B2B procurement advice for water boards, JJM contractors, and structural piling engineers:

• Mill coordination: The quotation identifies the proposed manufacturer and whether supply is from stock, incoming production, or direct mill dispatch.
• Coating and lining: State the complete approved system, inspection plan, repair method, end cutback, and field-joint responsibility.
• Test records: List each required MTC, NDT, hydrotest, dimensional, coating, and inspection document rather than assuming one standard pack.
• Heavy logistics: Share route and site constraints early so supports, lifting points, vehicle type, permits, and unloading can be planned with the carrier.

Large-pipe receiving and stringing plan

Prepare a pipe register before dispatch. Give each item or bundle a reference tied to heat, pipe number where applicable, size, wall, length, coating or lining status, and dossier entry. The receiving team should have the approved packing list and a defined quarantine area for items with damaged identification, ends, coating, or documents.

Inspect transport supports and tie-down contact areas before unloading. Check accessible ends, bevel protection, roundness indicators, dents, coating holidays or impact damage, lining edges, water entry, and shifted separators. Record defects against the pipe reference while it is still on the vehicle. Agree lifting methods that protect the pipe body, ends, coating, and lining.

The stringing plan should preserve pipe order and traceability through field storage, end preparation, welding, coating repair, and lowering. Keep approved repair materials and procedures available at the work front. A dispatch release confirms the agreed manufacturing dossier; it does not replace site handling and installation inspection.

Before loading, compare the route survey with pipe length, diameter, trailer geometry, overhang controls, bridge or gate restrictions, and the sequence in which the site needs material. Mark any load that needs special lifting gear or a prepared laydown area. The carrier, supplier, and consignee should share one contact and escalation sheet for route or unloading changes.

At the work front, keep bevel preparation, fit-up, welding, examination, field-joint coating, and repair records tied to the pipe register. If a pipe is cut or moved to a different chainage, update the register before work continues. This discipline protects traceability without relying on memory after markings become obscured by handling or coating.

• Send an LSAW or HSAW RFQ Attach the project specification and include route, grade, OD, wall, length, testing, coating, lining, quantity, and site details.
• Prepare a preliminary pipe mass Use the estimate for takeoff and transport planning, then confirm the mill's commercial mass basis.
• Review Kanpur procurement information Plan local coordination before an inspection or collection.

What to include in the RFQ

1. Specify the relevant standard or grade where known.
2. Provide OD or NB, wall thickness or schedule, required length, and quantity.
3. State the delivery city or PIN code and any unloading constraints.
4. List MTC, IBR, TPI, marking, inspection, or other documentation requirements.
